Solar powered pond - part 6
Actually, this isn't exactly related to the Solar Powered pond... it's more to do with the collection of DATA and viewing it.
Previously, I was using a node-red dashboard to output the current / live status of the data fetched (via modbus) from the MPPT controler. This worked a treat...however.... it did tend to crash after a day or so. Digging a bit deeper; whilst I was saving the data to a stats.csv file (gets re-created upon the RPi restart), this was always a temporary solution and the data should be saved into an InFluxDB... turns out the node-red charts are okay for showing data "for a bit"... but not the 1000s od data points I was giving it every second for days on end, something has to give... analysing the webpage content, the dashboard could grow from a 20-ish MB page up to 400+ MB page; just to show live data.
Something had to be done about this....and well, a midday overcast Sunday proved to be the solution.

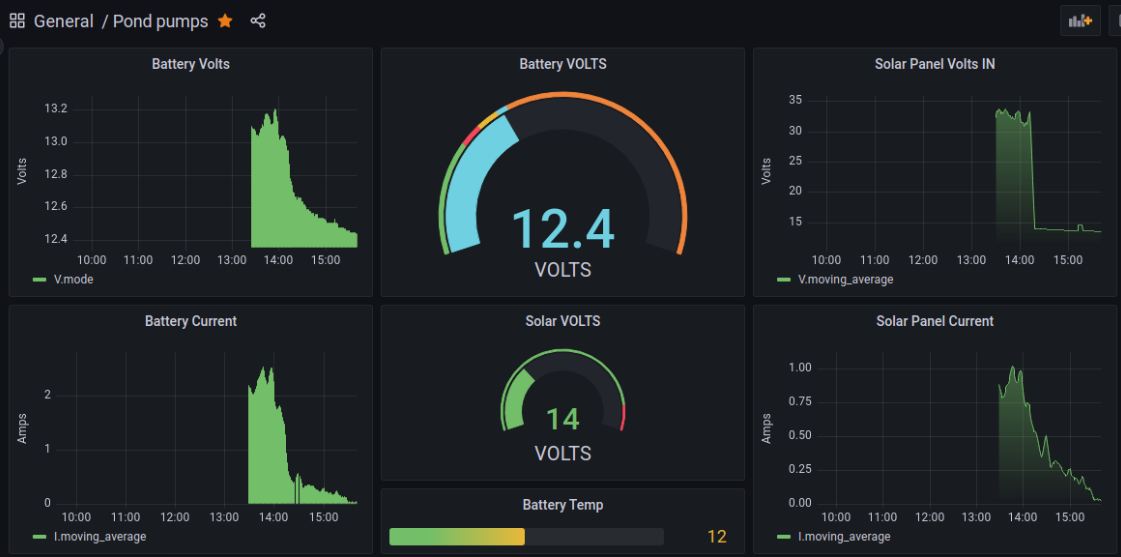

Behold GRAFANA presenting data from an InFluxDB (is it with a capaital F, I should really check) :
I installed InFluxDB (I've started now, so I be consistent!) onto the RPi 3+ device, I also installed Grafana and then set it into anonymous-authentication mode - shock!horror! run for the hills screaming!!! yes, as this is running from localhost and I only want/need to use this at home, I really don't care about the added security layer (for now....)
I suppose in true tradition, I should record the steps that I followed here, so I can re-do it again when I blow this RPi 3 device up, or upgrade or change it out to run on a PICO W or something else :-)
Turns out it actually is: InfluxDB.... I've been adding the capital F, because, well, because, I'll stop it now...
I was looking at following this article:
https://learn.pimoroni.com/article/enviro-and-influxdb#installing-influxdb-and-grafana
I got tot he first link and followed the "excellent tutorial" here:
https://sandyjmacdonald.github.io/2021/12/29/setting-up-influxdb-and-grafana-on-the-raspberry-pi-4/
That in a nut-shell tells you to do the following:
Install InfluxDB:
$ wget -qO- https://repos.influxdata.com/influxdb.key | gpg --dearmor | sudo tee /usr/share/keyrings/influx-archive-keyring.gpg >/dev/null
$ echo "deb [signed-by=/usr/share/keyrings/influx-archive-keyring.gpg] https://repos.influxdata.com/debian $(lsb_release -cs) stable" | sudo tee /etc/apt/sources.list.d/influxdb.list
$ sudo apt update && sudo apt install -y influxdb
That's it. you've got it installed now. However, you might want o run it as an auto-service, so do:
$ sudo systemctl unmask influxdb.service
$ sudo systemctl start influxdb
$ sudo systemctl enable influxdb.service
From a command-line, you can literally type:
$ influx
That gets you into a prompt, then type the following:
create database home
use home
create user grafana with password 'grafana' with all privileges
grant all privileges on home to grafana
Yeah, I did that...I set the grafana password to be that simple - come hack me :-D
just to check, now type:
show users
and it should show that grafana user is an admin.
Install Grafana:
Within the same Terminator window, type the following:
$ wget -O- https://packages.grafana.com/gpg.key | gpg --dearmor | sudo tee /usr/share/keyrings/grafana-archive-keyring.gpg >/dev/null
$ echo "deb [signed-by=/usr/share/keyrings/grafana-archive-keyring.gpg] https://packages.grafana.com/oss/deb stable main" | sudo tee /etc/apt/sources.list.d/grafana.list
$ sudo apt update && sudo apt install -y grafana
Now, there will be some comment at the end about you needing to do some stuff...basically it is this:
$ sudo systemctl unmask grafana-server.service
$ sudo systemctl start grafana-server
$sudo systemctl enable grafana-server.service
You now have Grafana installed locally and as an auto-starting service too. sweet.
As the previously linked article states, now you open up a web-browser to http://IP:3000
change the password to something like grafanaadmin - or something so easy to hack/crack it's painful.
...and that's it, you can now start creating a dashboard.
I found the 2nd part of this ARTICLE:
https://sandyjmacdonald.github.io/2021/12/29/logging-raspberry-pi-environmental-data-to-influxdb/
rather helpful in setting up access to the data to show in a panel.
I now just have to figure out how to display gauges as well as bar charts - I love a good gauge!
Oh, as to anonymous-access? why did I do that?
Well.... I have the RPi set up to auto-boot into chromium and display the dashboard, so I can have an instant panel visible to give me an indicator of status - what dashboards are useful for. However, by default grafana is setup to have login access; quite rightly. It's a very powerful feature, you can share dashboards with different teams of people in different organisations (that you define - basically groups), it's pretty nifty & I would totally use it in a work environment like that...however, this is just me, so it is not needed here.
On the RPi device:
$ cd /etc/grafana
$ sudo nano grafana.ini
Then scroll down 5-6 screens and then make the edits as shown here:
https://grafana.com/docs/grafana/v9.0/setup-grafana/configure-security/configure-authentication/grafana/#anonymous-authentication
You will need a device / service restart - just easier to bounce the RPi.
I changed the Chromium auto-start webpage to be the SHARE link of the dashboard and lo-and-behold, it shows up in KIOSK mode on the screen - it's been running now for an hor or so and hasn't crashed yet! I'll get access from my phone on the network too and a few other devices, just to replicate what I was doing with node-red dashboard.
Absolutely no dig at node-red here, it does what it does and does it well, I was just abusing it and always knew I needed to move to a different dashboard - I've done that now & it wasn't as painful as I thought! That's always a bonus.
